Road Wizard

Built for the most demanding jobs.
Least demanding to operate.

The Elgin Road Wizard® mechanical broom sweeper has powerful, dual-engine design with a 360 gallon (1363l) water tank for superior dust control and a large 5.4 yd3 (4.1 m3) hopper.

This sweeper features a double-scissors lifting mechanism, which is center-mounted for greater stability, rigidity and trouble free operation. Plus, its dumping height is variable up to 11 feet, 2 inches (3404 mm), and 11” (279 mm) of hopper side-shift ensures uniform dumping.

The Elgin Road Wizard is now available with your choice of squeegee or no-jam belt conveyor systems depending on the application requirements. The Road Wizard offers the flexibility of mounting on a selection of commercial cab-over or conventional chassis. Due to its quad-pump hydraulics design, all sweeper functions operate in parallel, allowing the Road Wizard to power through any heavy construction and gravel loading application.

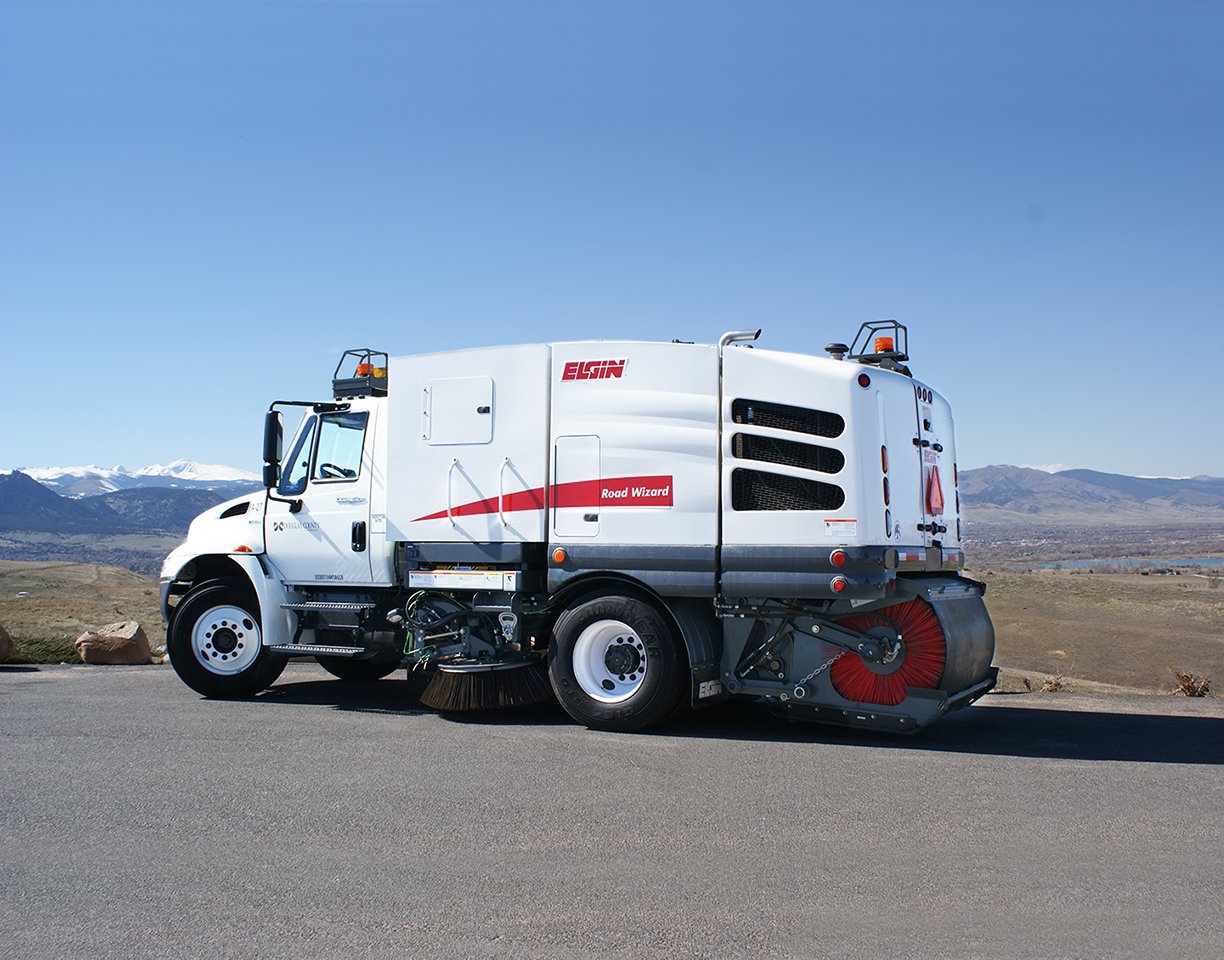

Road Wizard Mountains

Popular Enhancements

broombear-lighting-options

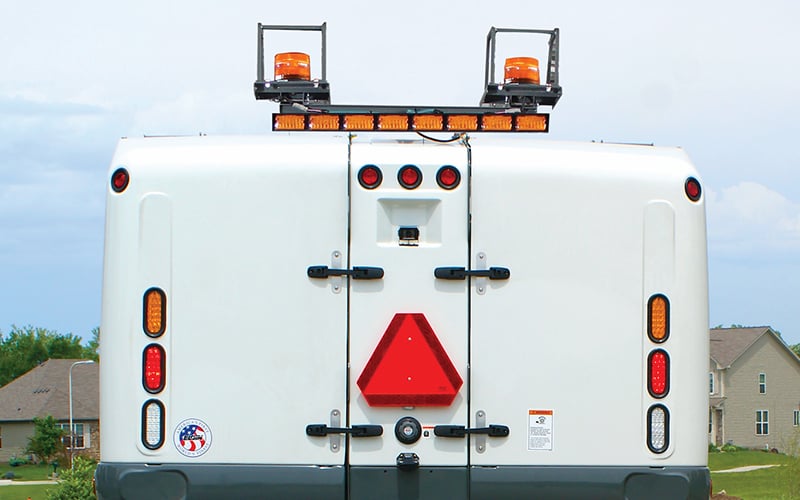

LIGHTING PACKAGES

The Road Wizard sweeper can be equipped with a variety of optional lighting packages. Lighting packages are designed for flexibility based on
customer requirements and can include strobes, beacons and arrow sticks.

broombear-lifeliner

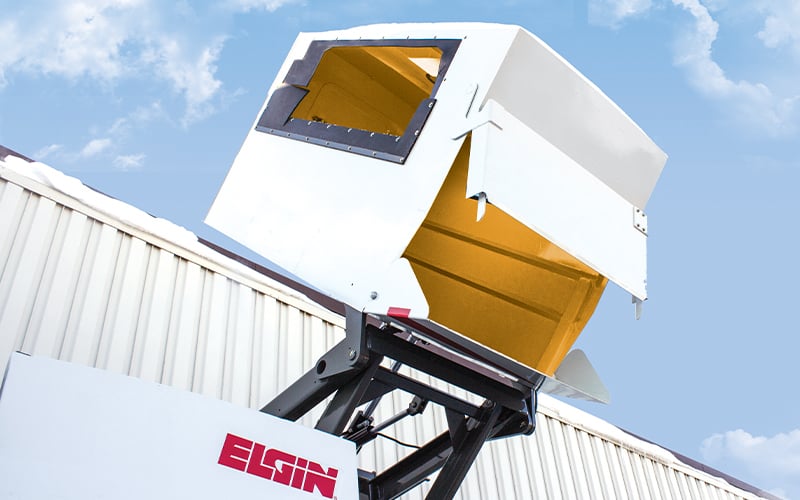

LIFELINER® HOPPER SYSTEM

The LifeLiner hopper system is a specially designed hopper liner and finish system that greatly improves the life, durability, and functionality of a sweeper hopper. The LifeLiner hopper system is backed by a lifetime warranty.

sidebroom-tilt

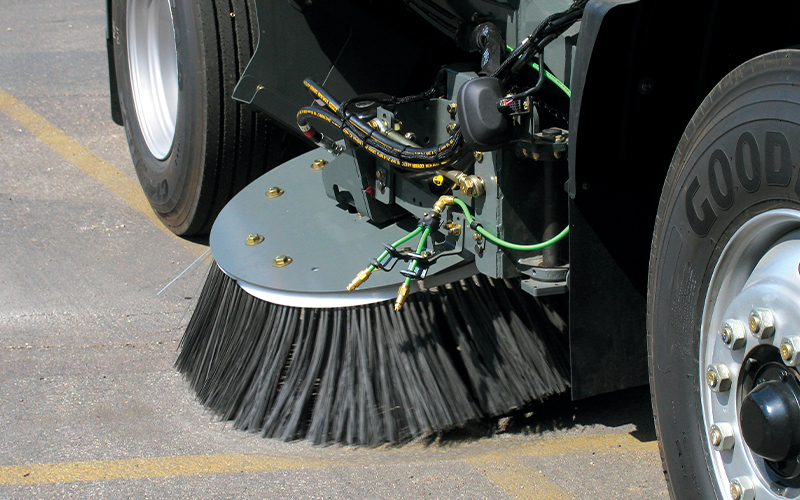

IN-CAB SIDE BROOM TILT AND
EXTENDED REACH

Allows operator to sweep effectively in variably-pitched gutters. On-the-go pitch adjustment with a simple variable rocker switch. Extended reach allows the side broom to follow curbs and tight cul-de-sacs.

HIGH PRODUCTIVITY SWEEP SYSTEM

  • Large 5.4 yd3 (4.1 m3) hopper
  • Standard squeegee with patented interchangeability to chevron conveyor belt system

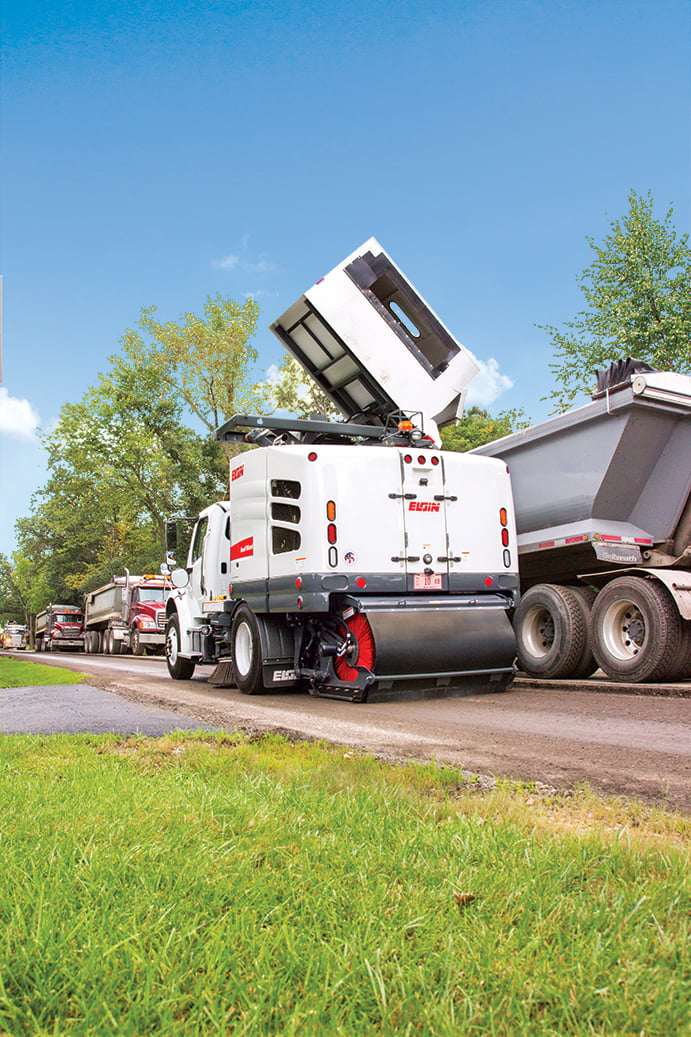

  • 11" (279 mm) hopper side shift for maximizing dump truck/container payload distribution
  • 74hp Cummins Tier 4 final auxiliary engine
  • Quad-pump hydraulic system for maximum power to the ground while sweeping

Road Wizard
Mechanical Sweeper

Elgin's mechanical sweeper design follows a proven and traditional approach.  Our design can be equipped with an industry-leading 60" belt and water-nozzles for dust suppression.
